live sound mixing console

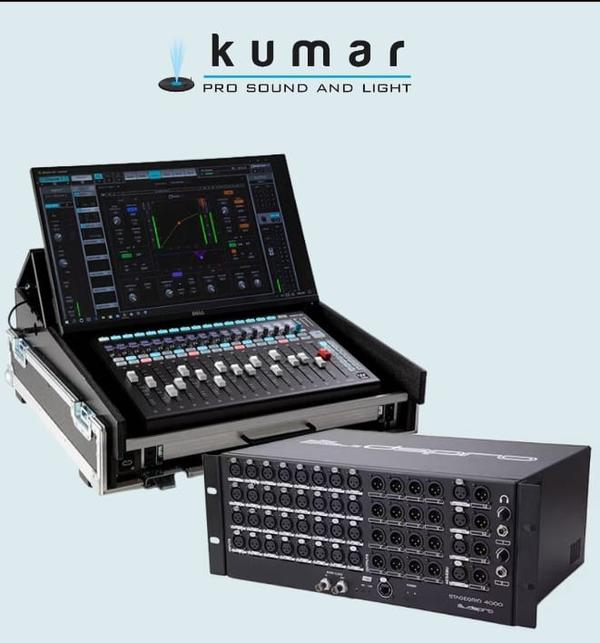

The image displays a professional live-sound mixing and processing system built around the Waves SoundGrid ecosystem. At the center of the setup is a rack-mounted touchscreen running Waves’ eMotion LV1 digital mixing software, which provides detailed control over channel processing, routing, and plugin integration. Below the screen sits a compact hardware control surface, offering tactile fader and parameter control for the LV1 interface, making real-time mixing more efficient during live performances. In the lower section of the left rack, a Waves SoundGrid Extreme Server is installed. This dedicated DSP unit handles plugin processing with extremely low latency, enabling engineers to run complex chains of Waves audio plugins without taxing a host computer. Its rugged, rack-ready design makes it suitable for touring and high-demand production environments. To the right of the main rack are two stacked Waves StageGrid 4000 units. These are high-density stageboxes that provide extensive analog and digital I/O, allowing microphones, instruments, and external equipment to integrate seamlessly with the SoundGrid network. With dozens of XLR inputs and outputs, they function as the primary connection hubs for live stages or broadcast setups. Overall, the system combines powerful digital mixing, reliable DSP processing, and expansive I/O flexibility for professional audio workflows.
